FORWARD FW-HA01/02/03/04/05 Spiral-Wind 800 W Hot-Air Desoldering Station

₹9556 ₹ 10000 4%
Availability: 1

A high-power (800 W) spiral-wind hot-air desoldering station from FORWARD, with precise temperature control, rapid heating, multiple nozzles, and active safety protection. Ideal for mobile phone, PCB, and BGA repair work.

Quantity:
Categories: Mobile Repair Tools
SKU code: FW-HA01
Genuine Product
Safe Payment
Pan India Delivery
No 1 Brand Mobile Tools

Product Description -:

Here’s an expanded description and feature list that you can put on the product page:


Overview
The FORWARD FW-HA01/02/03/04/05 Spiral-Wind Hot-Air Desoldering Station is a robust and efficient rework tool tailored for electronics repair technicians. With 800 W of heating power, it rapidly reaches high temperatures and delivers precise control — making it ideal for mobile phone motherboard repairs, CPU/BGA desoldering, and PCB work.

Key Features:

  1. High-Precision Temperature Control

    • Uses advanced temperature control technology.

    • Constant-temperature accuracy: ±2 °C (linear distortion < ±3 °C).

    • Fast Heating & Stable Operation

    • 800 W ceramic heating core.

    • Heats from room temperature to 350 °C in ~35 seconds (for most variants).

    • Maintains stable temperature without damaging delicate components.

  2. Multiple Interchangeable Nozzles

    • Comes with nozzles of sizes 5 mm, 6 mm, 8 mm, 10 mm, and 12 mm.

  3. Active Safety Protections

    • Patented safety protection that monitors up to 35 fault conditions.

    • Anti-dry burn function, no spontaneous combustion, automatic load cut-off in case of fault.

    • Prevents handle from burning by limiting risk.

    • Compact & Practical Design

    • Small form factor — doesn’t take up too much bench space.

    • Handle position is interchangeable (left/right), making it ergonomically flexible.

    • Temperature Calibration

    • Allows calibration of the actual nozzle temperature.

    • You can save the calibrated temperature data for consistent and accurate operations.

  4. High-Performance Fan

    • Brushless ball-bearing fan, 10,500 RPM.

    • Airflow of ~30 L/min, which is ~81.8% more than comparable models.

    • Delivers stable and powerful airflow with low noise and durable construction.

  5. Specific Variant Features:

    • FW-HA03: Adds automatic sleep and automatic cooling; LCD screen shows both temperature and air volume.

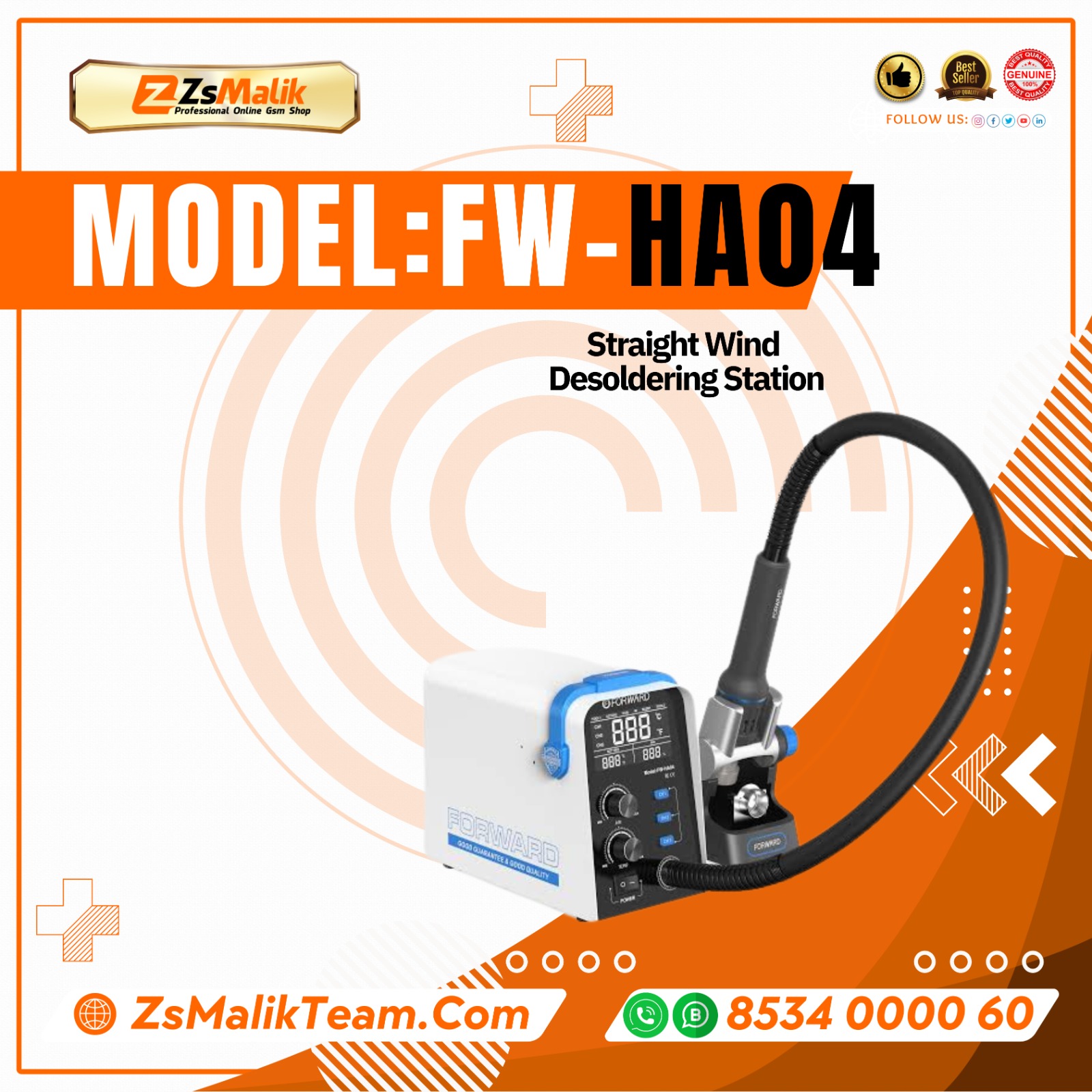

    • FW-HA04: Uses microcomputer PID control with a K-type thermocouple sensor for very precise regulation; magnetic switch handle; alarm for over-temperature, no heat, etc.

    • FW-HA05: Uses “soft spiral wind” for uniform heating, reducing thermal shock; auto sleep / cold wind mode; PID temperature control.

    • Wide Temperature Range

    • Operates between 100 °C to 500 °C (212 °F to 932 °F), depending on variant.

    • Voltage Options

    • Available in both 110 V and 220 V variants.

Why Choose This?

  • Perfect for phone repair shops, electronics service centers, and hobbyists working on small PCBs and BGA parts.

  • The combination of high power, precise control, and safety protection makes it reliable for repeated professional use.

  • Multiple variants (HA01–HA05) let you choose what features you want (e.g., sleep mode, different airflow behavior).
