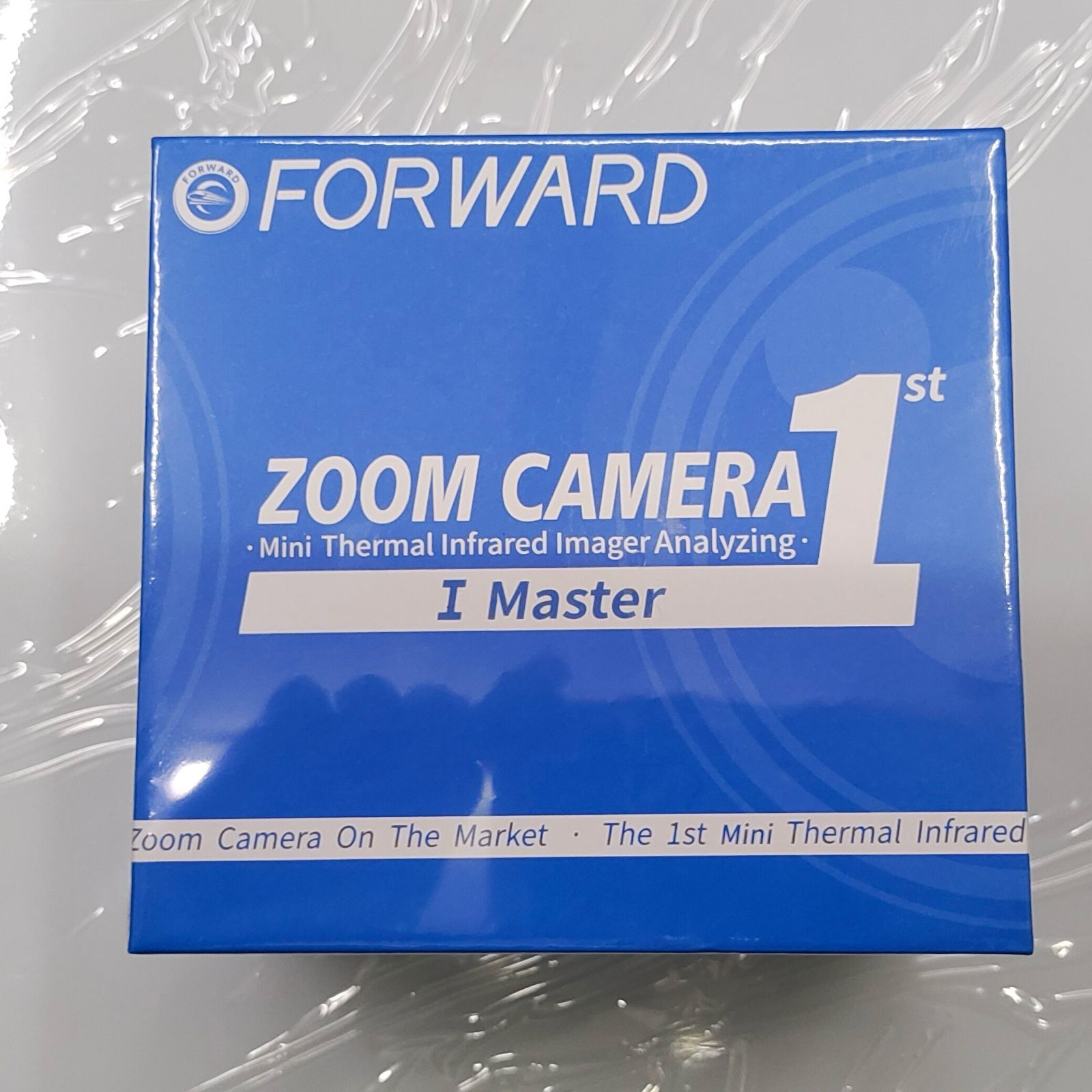

Compact yet powerful: the FORWARD iMaster Mini thermal infrared imager features a 70mm–8000mm zoom lens and supports mobile & microscope use for fault diagnostics and thermal tracking.
The FORWARD iMaster Mini Thermal Infrared Imager Zoom Camera is designed for high-precision thermal inspection, maintenance and repair tasks. With a high-sensitivity vanadium‐oxide uncooled detector and a specification of 256×192 resolution, it delivers clear infrared imaging for identifying faults, monitoring temperature differences and performing diagnostics.
Key Features:
Zoom lens focus range: 70mm to 8000mm — ideal for both close-up and extended distance inspection.
Compatible with 99% of microscopes and also supports mobile terminal connection for flexible use.
Compact “mini” form factor for ease of deployment and handling.
Instant fault-visualisation and efficient maintenance support: thermal differences stand out immediately.
Detection wavelength roughly 7–12 µm; interface type: Type-C to USB.
Ideal for mobile repair, microscope inspection, PCB & electronic fault diagnosis — or any application where non-contact thermal measurement is critical.
Technical Specifications (highlights):
Detector Type: High-sensitivity vanadium oxide uncooled detector.
Resolution: 256 × 192 pixels.
Focal Length / Zoom Range: 70mm – 8000mm.
Wavelength Range: ~7-12 µm.
Temperature Measurement Distance: approx 7mm to ~20m.
Temperature Measurement Range & Accuracy: e.g., around –20 °C to 350 °C; accuracy ±5 °C or ±5%.
Use Cases & Applications:
Electronics repair: identify hot spots, board faults, loose connections.
Microscope-based inspection: integrate with microscopes for thermal overlay.
Mobile repair labs: portable imaging tool for field diagnostics.
Maintenance & condition monitoring: use in industrial or lab environments to spot thermal anomalies.
Non-contact temperature tracking: for sensitive components where contact sensors are not viable.
Why choose this product?
Because of its impressive zoom range and compatibility with microscopes, it offers a rare capability in a compact form. Many thermal imagers focus only on fixed lenses; this model gives unusually long zoom plus the mini format. This gives you great flexibility across different repair and inspection scenarios.
