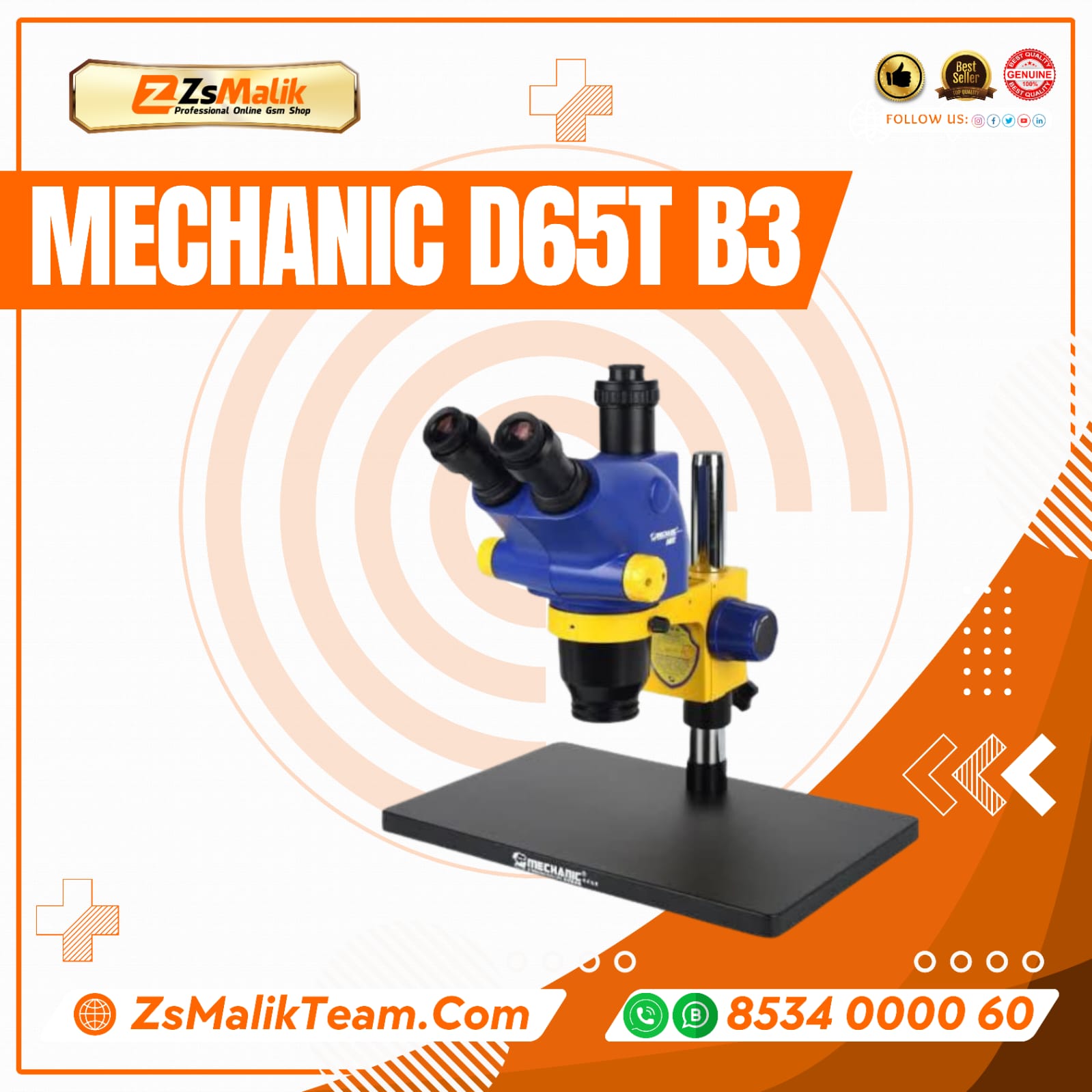

The Mechanic D65T-B3 Trinocular Stereo Microscope is a professional microscope designed for mobile phone repair, PCB inspection, and electronic component soldering work. It features 6.5X-65X continuous zoom magnification, high-definition optics, wide-field eyepieces, and adjustable LED lighting for clear and precise observation. This microscope offers a 100mm working distance and stable large base, making it ideal for technicians working on delicate motherboard repairs and micro soldering tasks.
The Mechanic D65T-B3 is a high-performance stereo microscope specially designed for mobile phone technicians, electronics repair professionals, and PCB repair labs. It provides high clarity imaging with continuous zoom and adjustable illumination for accurate inspection and micro-repair work.
• 6.5X-65X Continuous Zoom Magnification
Allows precise zoom adjustment for detailed inspection of electronic components and micro-circuits.
• Trinocular Viewing Head
Supports microscope camera connection for external display or recording.
• Wide Field High Eyepoint Eyepiece (WF10X / 22mm)
Provides a larger viewing field with clear and comfortable observation.
• 100mm Working Distance
Enough space for soldering, PCB repair, and chip-level work under the microscope.
• Adjustable LED Ring Light
High-brightness LED with adjustable brightness ensures stable illumination during repair work.
• Large Stable Base Plate
Base size 195 × 256 mm provides stability and a comfortable workspace.
• High-Definition Optical Lens
FMC anti-reflection coated optics deliver sharp, distortion-free images with excellent light transmission.
• Metal Precision Focusing System
Smooth and accurate focusing for clear observation of micro components.
• 360° Rotation Support
Flexible viewing angles for easier operation and inspection.
Brand: Mechanic
Model: D65T-B3
Type: Trinocular Stereo Microscope
Magnification: 6.5X – 65X
Eyepiece: WF10X / 22mm
Viewing Head: 45° inclined
Interpupillary Distance: 54 – 76mm
Working Distance: 100mm
Focusing Range: 50mm
Light Source: LED Ring Light
LED Bulbs: 56 pcs
Voltage: AC 90-240V
Power: 4.5W
Base Plate Size: 195 × 256 mm
