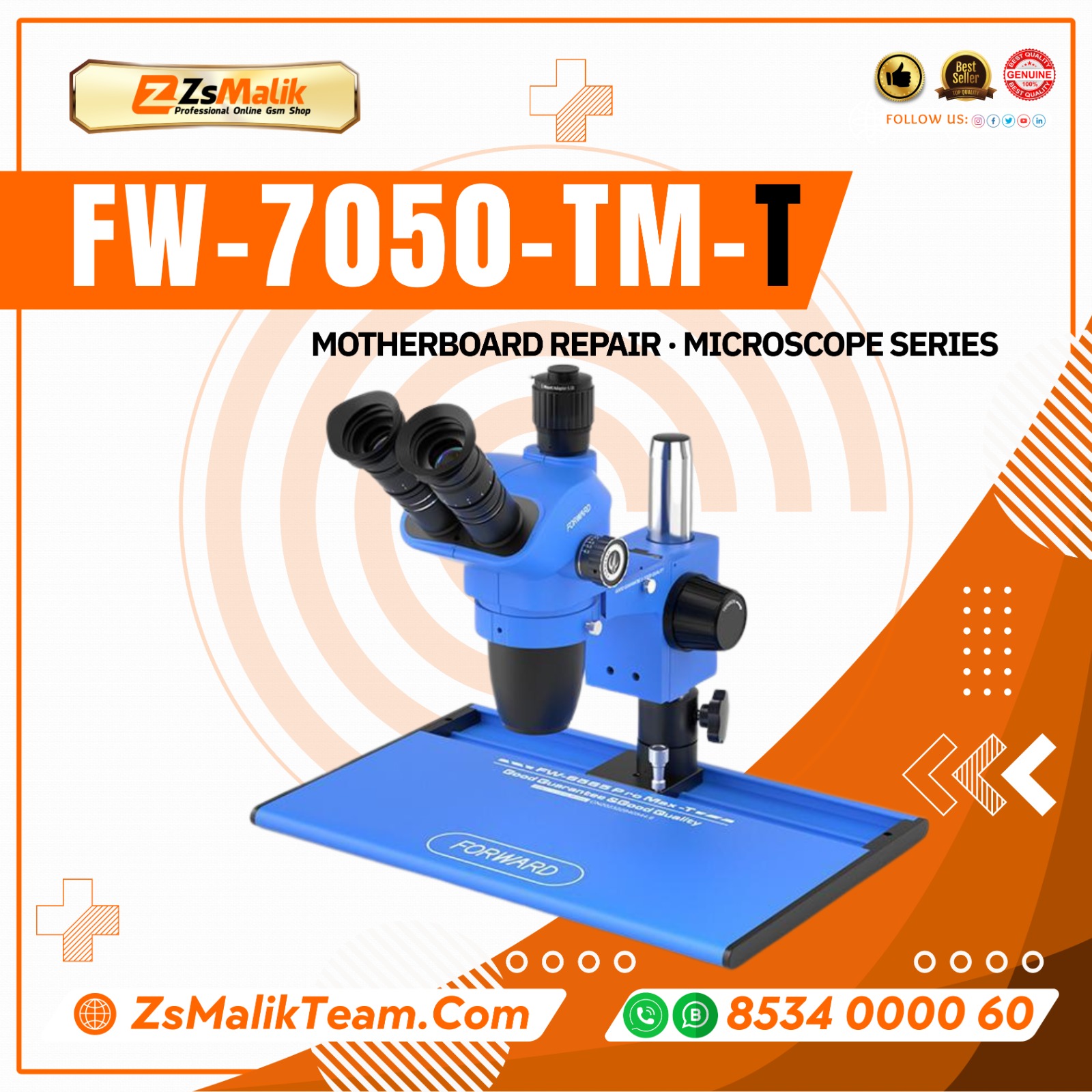

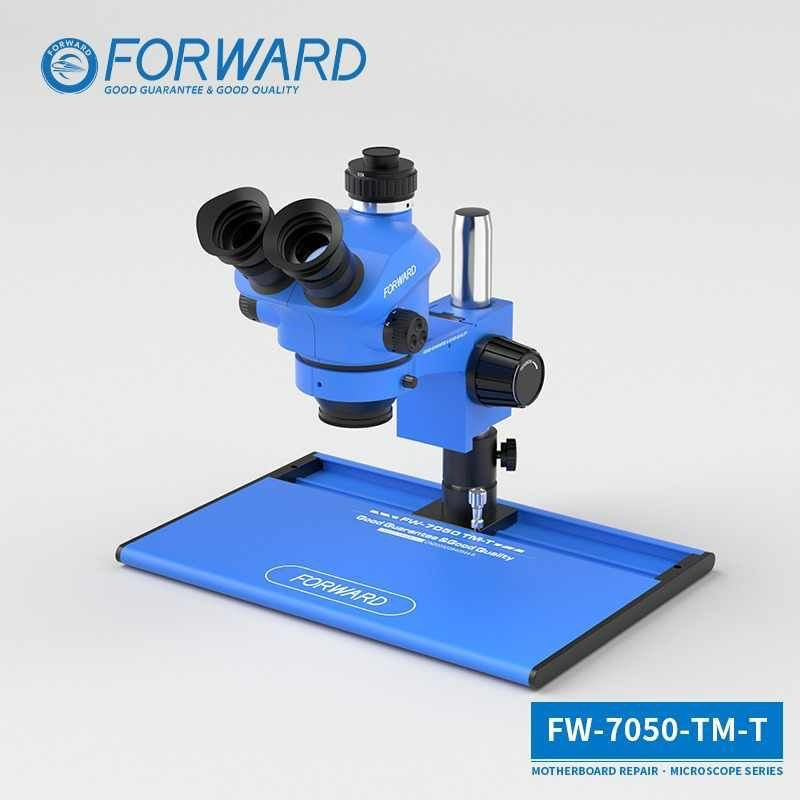

High-precision 7×–50× stereo trinocular microscope optimized for mobile phone motherboard repair, featuring a large sliding base and synchronous zoom capability.
The FW-7050 TM-T Synchronous Zoom Trinocular Stereo Microscope is ideal for mobile phone repair workshops, especially for motherboard-level diagnosis. With a continuous 7×–50× zoom range, this microscope lets technicians examine fine components with clarity and precision.
Key Features:
Large Slide Base: 260 × 380 mm independently developed, patented sliding base makes positioning PCBs and motherboards effortless.
Adjustable LED Illumination: 144 LED lamp beads with brightness control, providing stable and uniform lighting.
0.5× C-TV Adapter: Supports camera integration for synchronized viewing or recording of the zoomed image.
Optical Glass Lenses: High-quality, dust-proof objective lens ensures sharp images and long-term durability.
Height-Limit Lock: Prevents unintended focal shift, ensuring consistent focus when examining components.
Eyepieces: Comes with standard eyecup + patented air-cushion anti-light leakage eyecup for user comfort.
Pillar Stand: Vertical pillar of 250 mm height with 32 mm diameter for stability.
Zoom Mechanism: 7×–50× trinocular continuous zoom, allowing for seamless magnification adjustment.
Eyepiece Specification: WF10× / 22 mm, giving a wide field of view.
Dust-Proof Bag: Included to protect the microscope during downtime or transport.
Gross Weight: 5.8 kg.
Packaging Size: 424 × 328 × 250 mm.
Use Case / Application
Designed specifically for technicians in mobile phone repair shops, the FW-7050 TM-T microscope is perfect for motherboard-level inspections. Its large sliding base helps in handling circuit boards easily, while the adjustable LED light and high zoom make it easier to spot fine defects, solder joints, or component damage.
