The MLC500 High Precision Auto-Ranging LCR Meter is designed for accurate measurement of capacitance and inductance in electronic components. It features automatic range selection, a high-resolution 5-digit LCD with backlight, and LC/RC oscillation measurement technology. With USB connectivity for PC data recording and a wide measurement range, it is suitable for electronics testing, PCB repair, and professional mobile repairing work.

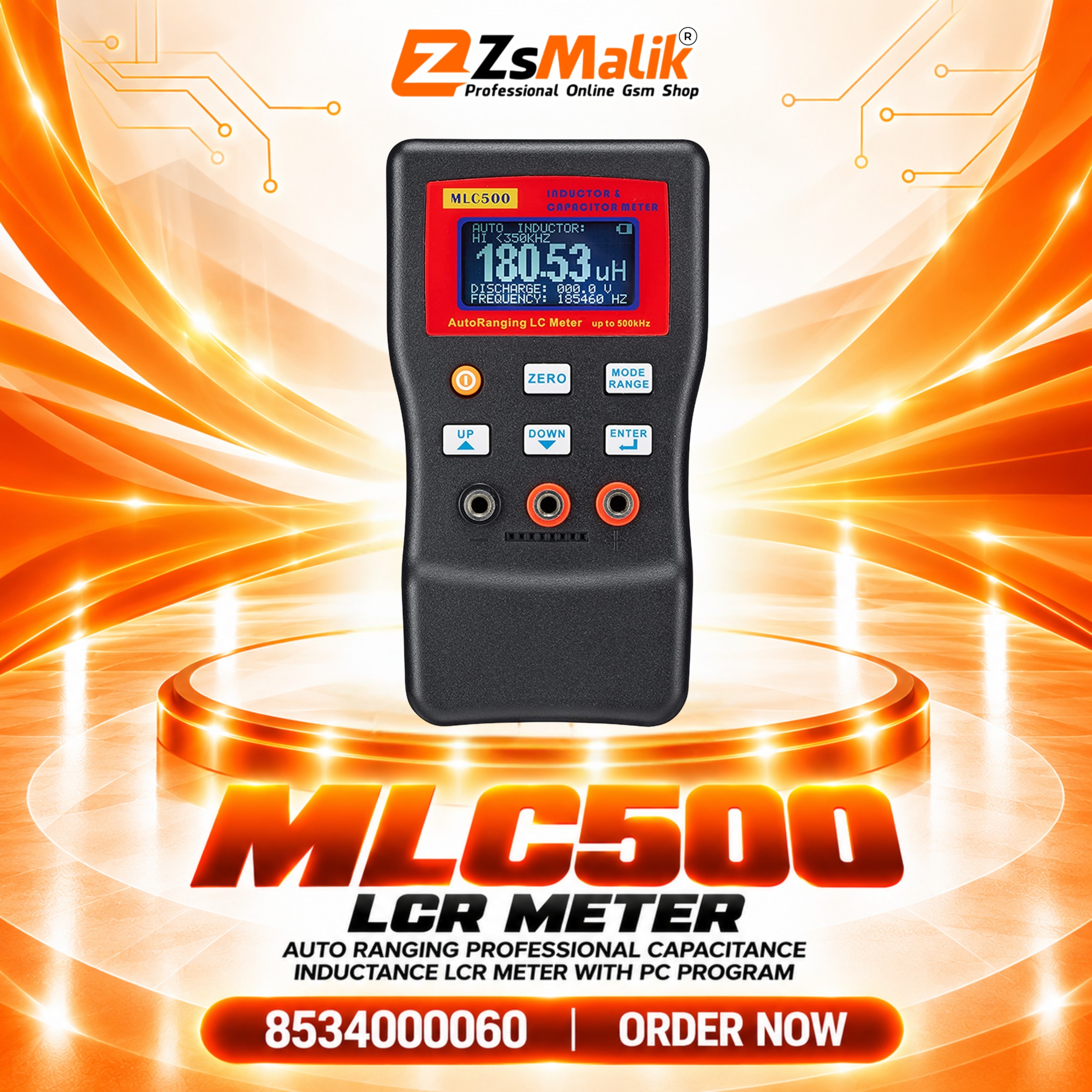

MLC500 High Precision Auto-Ranging LCR Meter
The MLC500 LCR Meter is a professional electronic testing instrument designed to measure capacitance and inductance with high resolution and stability. Its automatic range selection and easy-to-read backlit LCD make it useful for electronics technicians, repair professionals, and electronic component testing.
Key Features:
Automatic Range Selection: Automatically selects the appropriate measurement range.
High-Resolution Display: 128 × 64 dot-matrix LCD with backlight and up to 5-digit readings.
Wide Capacitance Range: Measures approximately 0.00 pF to 100.000 mF.
Wide Inductance Range: Measures approximately 0.000 µH to 100.000 H.
LC/RC Measurement Technology: Automatically selects LC or RC oscillation measurement according to the component being tested.
High Measurement Accuracy: Specified tolerance of approximately ±(1% + 1 digit) for capacitance and inductance.
USB Connectivity: Supports PC connectivity for measurement recording and component sorting functions with compatible software.
Automatic Calibration: Calibrates at startup using an internal reference capacitor.
Open/Short Zeroing: Supports open-circuit and short-circuit zeroing.
Multiple Test Terminals: Provides main and secondary testing terminals for component measurement.
