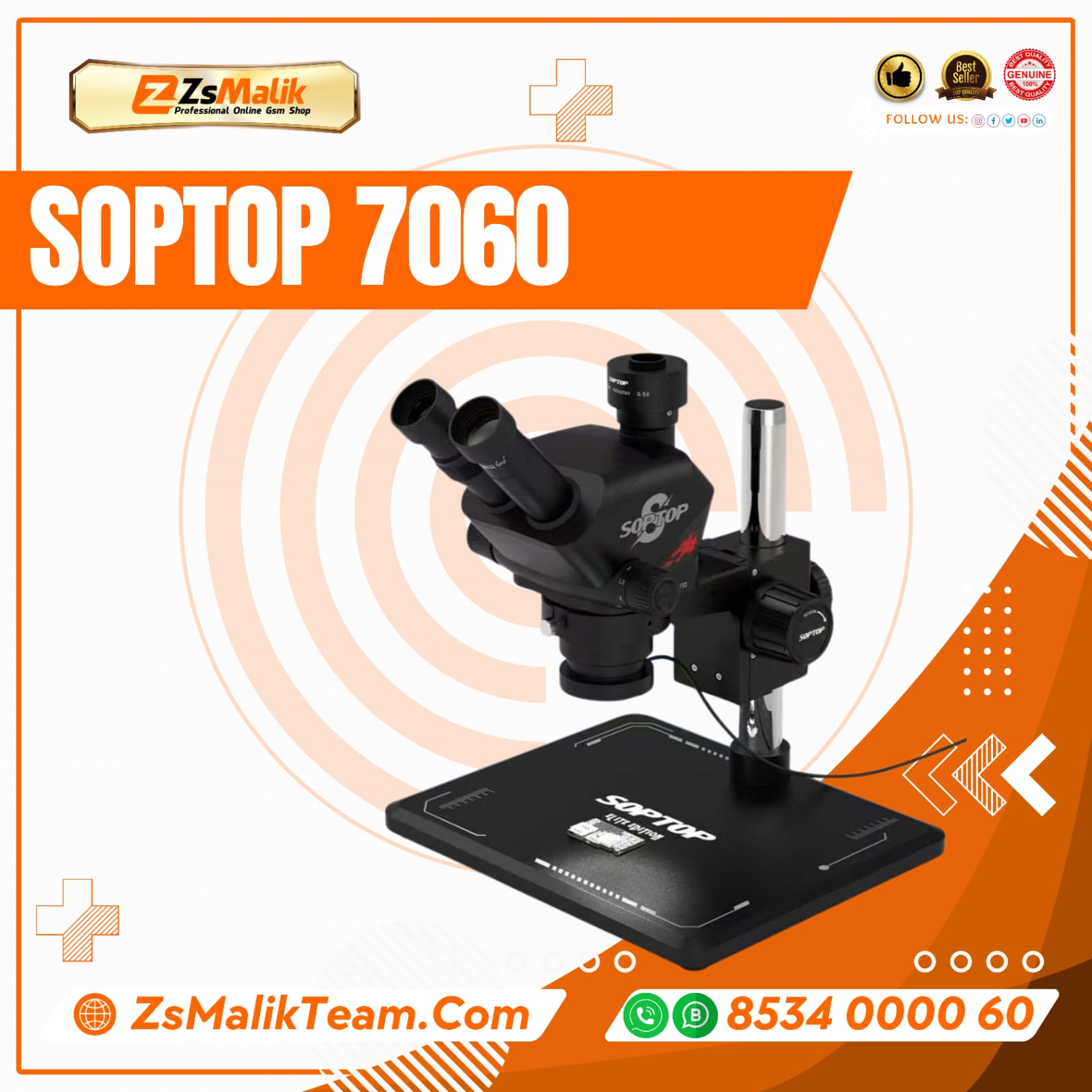

Professional 7–60× trinocular stereo microscope with a strong all-metal build, ultra-long working distance, and a large base — ideal for PCB or mobile repair.
Magnification: 7× to 60× continuous zoom for detailed inspection.
Objective Lens: 0.7–6× zoom, offering crisp and distortion-free imaging.
Viewing Head: Trinocular head, tilted at 45°, rotatable 360° for flexible viewing and camera integration.
Eyepiece: Wide-field flat eyepiece WF10× / 22 mm for comfortable viewing. Working Distance: Ultra-long 102 mm working distance — gives ample space for tools during repair tasks.
Focus Mechanism: Precision linear slide rail, focus handwheel with 50 mm fine adjustment.
Base: Large metal base (260 × 320 mm) for stable placement of PCBs or large components.
Camera Support: C-mount interface (0.35×, 0.5×, 0.65×, 1×), standard 0.5× CTV lens included.
Construction: All-metal body ensures stability and long-term durability.
Illumination: LED fill light, high brightness with no flicker, long lifespan, metal housing for better heat dissipation.
Pupillary Adjustment: Pupillary distance adjustable between 55 mm and 75 mm.
