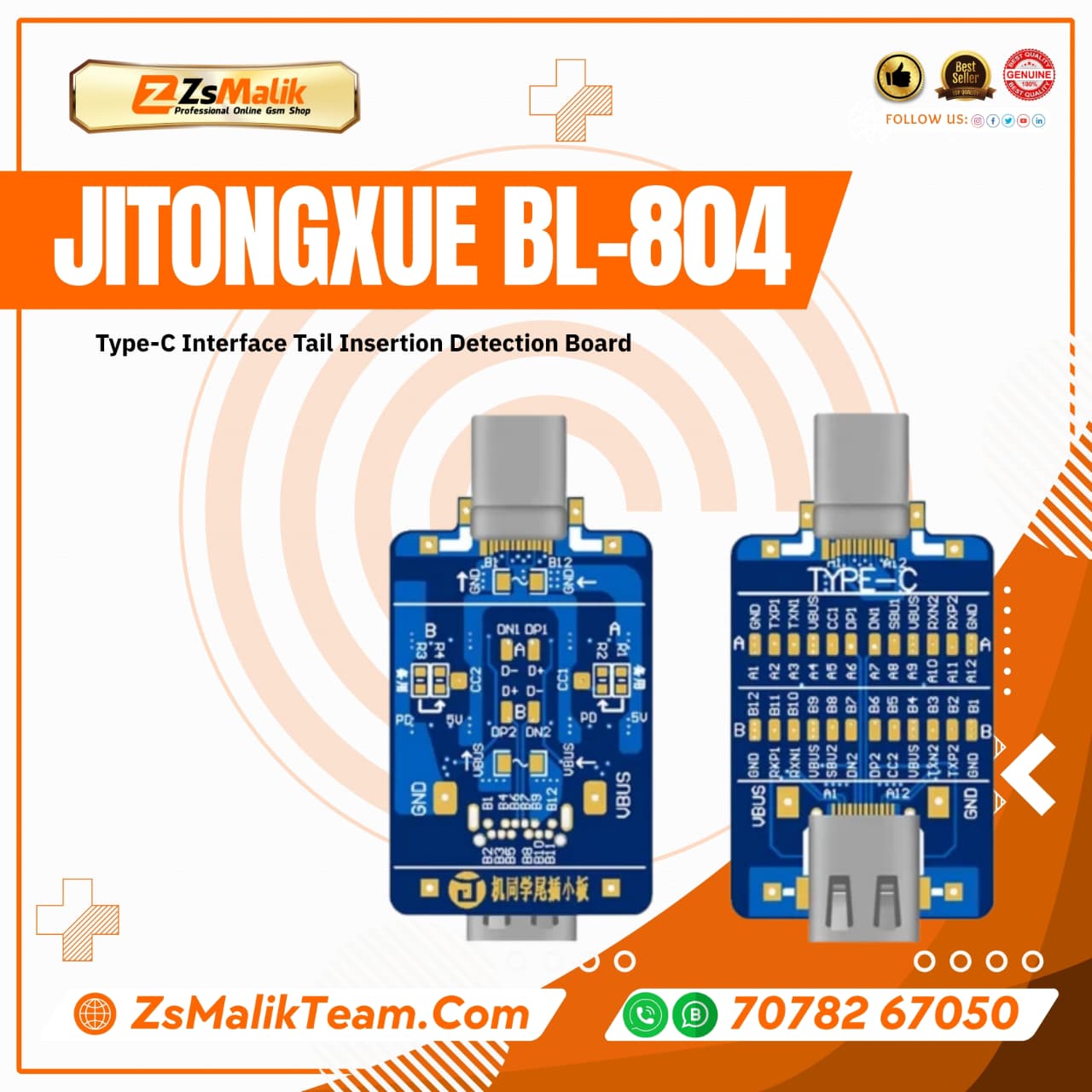

The Jitongxue BL-804 Type-C Interface Tail Insertion Detection Board is a professional diagnostic tool that enables accurate testing of Type-C charging circuits and fault points without disassembling the device. Ideal for smartphone and laptop technicians.
The Jitongxue BL-804 Detection Board is designed for quick and precise locating of charging fault points on Type-C devices. This compact board allows technicians to test resistance and voltage in real-time using a multimeter, helping identify issues in the USB connector and charging circuit without dismantling the device chassis.
Key Features:
Tail insertion detection board for easy access to charging circuit test points.
Detects resistance and voltage of USB Type-C connectors and 24 charging circuits.
Applicable to various Type-C devices including mobile phones and laptops.
High-quality components with long service life and reliable performance.
Enables real-time monitoring to quickly locate charging shorts, anomalies, and faults.
Does not require device disassembly for testing — a time-saving tool for repair professionals.
How to Use:
Insert the detection board into the Type-C port of the device.
Use a multimeter probes on the board’s test points.
Measure voltage and resistance to diagnose charging faults.
Package Includes:
1 × BL-804 Type-C Tail Insertion Detection Board
