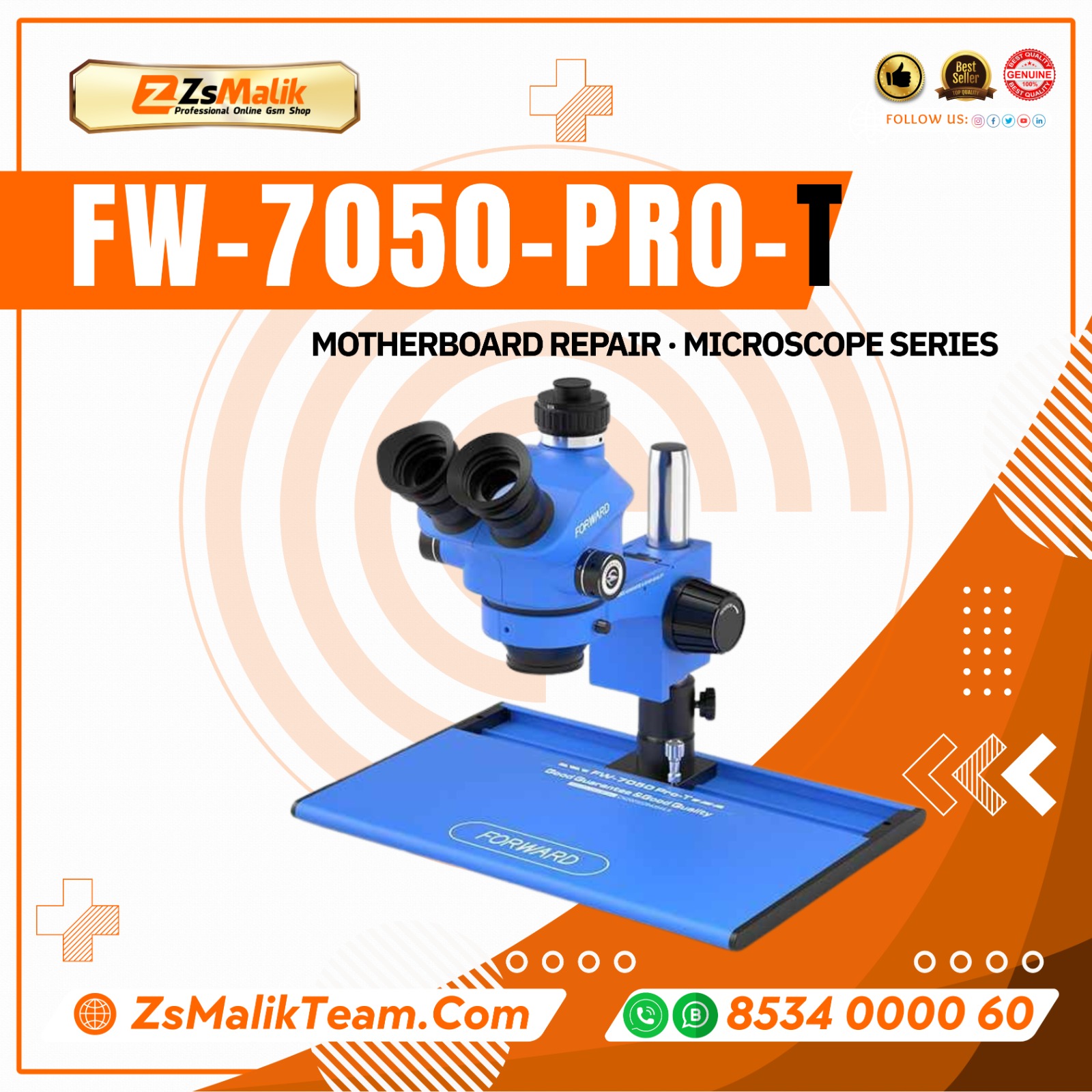

High-performance trinocular stereo microscope with continuous 7×–50× zoom, LED illumination, and dust-proof objective lens — ideal for inspection, research and industrial applications.
The FW-7050 features a professional grade optical system designed for precision, clarity and reliability. Key features include:
Continuous zoom magnification range of 7× to 50×.
Trinocular head allows both binocular viewing and installation of a camera for imaging or recording.
LED illumination with adjustable brightness and 144 lamp beads for stable, high-output lighting.
0.5× CTV (camera tube) included, enabling capturing clear images when integrating a camera system.
Professional optical glass dust-proof objective lens, giving high resolution and long service life.
Height-limit lock for added safety during vertical movement of the column.
Eyepiece: WF10× / 22 mm compatible, with standard and air-cushion anti-light-leakage eyecups (patented).
Robust mechanical build: large base (260×315 mm) for standard version; optional large slide base (260×380 mm) for “TM-T / Pro-T” variants.
Variant models available:
TM (standard)
TM-T (large slide base)
Pro (metal zoom lock knob – 6 gears)
Pro-T (large slide base + metal zoom lock knob)
Suitable for a broad range of uses: electronics inspection, semiconductor work, laboratory research, industrial quality control, medical device assembly, biological dissections and more.
