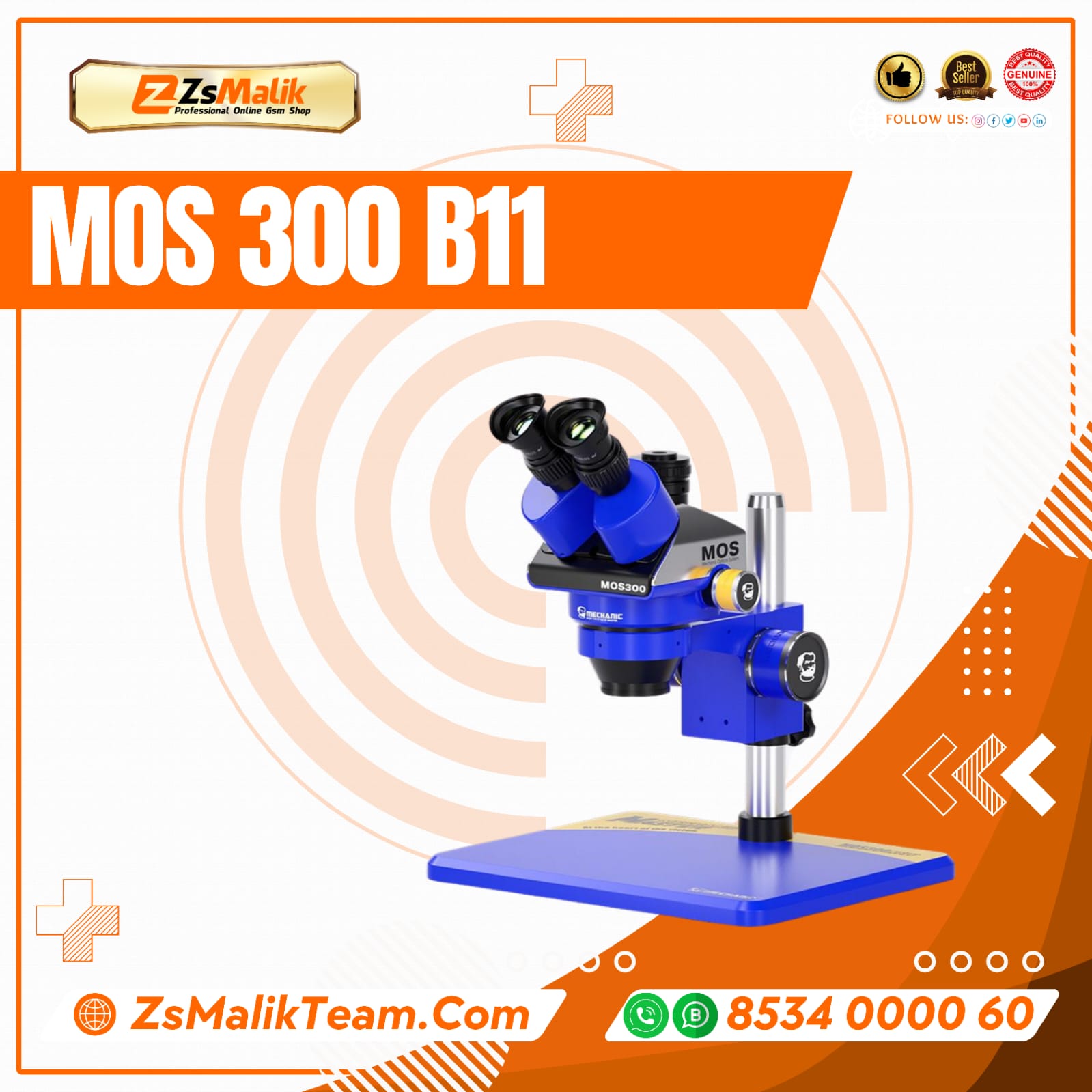

Mechanic MOS300 6-45X Stereo Trinocular Microscope

The Mechanic MOS300 is a high-precision stereo microscope built for mobile repair technicians, electronics engineers, and micro soldering professionals. With its continuous zoom optical system and clear HD imaging, it allows users to inspect tiny components, solder joints, IC chips, and motherboard circuits with extreme accuracy.

Key Features

✔ 6X–45X Continuous Zoom Magnification
Allows detailed inspection for PCB repair, IC soldering, and motherboard diagnostics.

✔ Trinocular Design (Camera Support)
Supports HD or 4K microscope camera for screen display, recording, and live inspection.

✔ Wide Angle WF10X Eyepieces
Provides a large field of view and comfortable observation even for users wearing glasses.

✔ B11 Heavy Duty Base
Strong metal base ensures stability and vibration-free work during soldering and repair.

✔ 360° Rotating Head
Adjustable microscope head for flexible working position and convenience.

✔ LED Ring Light Illumination
Provides bright shadow-free lighting for precise repair work.

✔ Large Working Distance (100mm)
Enough space to use soldering tools under the microscope.

Specifications

• Model: MOS300-B11

• Brand: Mechanic

• Microscope Type: Stereo Trinocular Microscope

• Magnification: 6X – 45X Continuous Zoom

• Objective Lens: 0.6X – 4.5X Zoom Range

• Eyepiece: WF10X/22 Wide Angle

• Working Distance: 100mm

• Head Rotation: 360° Adjustable

• Observation Angle: 45° Inclined

• Interpupillary Distance: 54–76mm

• Base Type: B11 Large Column Base

• Illumination: LED Ring Light

• Camera Port: Trinocular C-Mount

Applications

• Mobile phone motherboard repair

• PCB inspection

• BGA soldering

• IC chip repair

• Micro electronics inspection

• CPU and logic board diagnostics

Package Includes

• 1 × Mechanic MOS300 Trinocular Microscope

• 1 × B11 Microscope Base

• 1 × LED Ring Light

• 2 × WF10X Eyepieces

• 2 × Eye Guards

• 1 × Dust Cover

• 1 × Limit Block

• 1 × CTV 2/5 Camera Adapter
